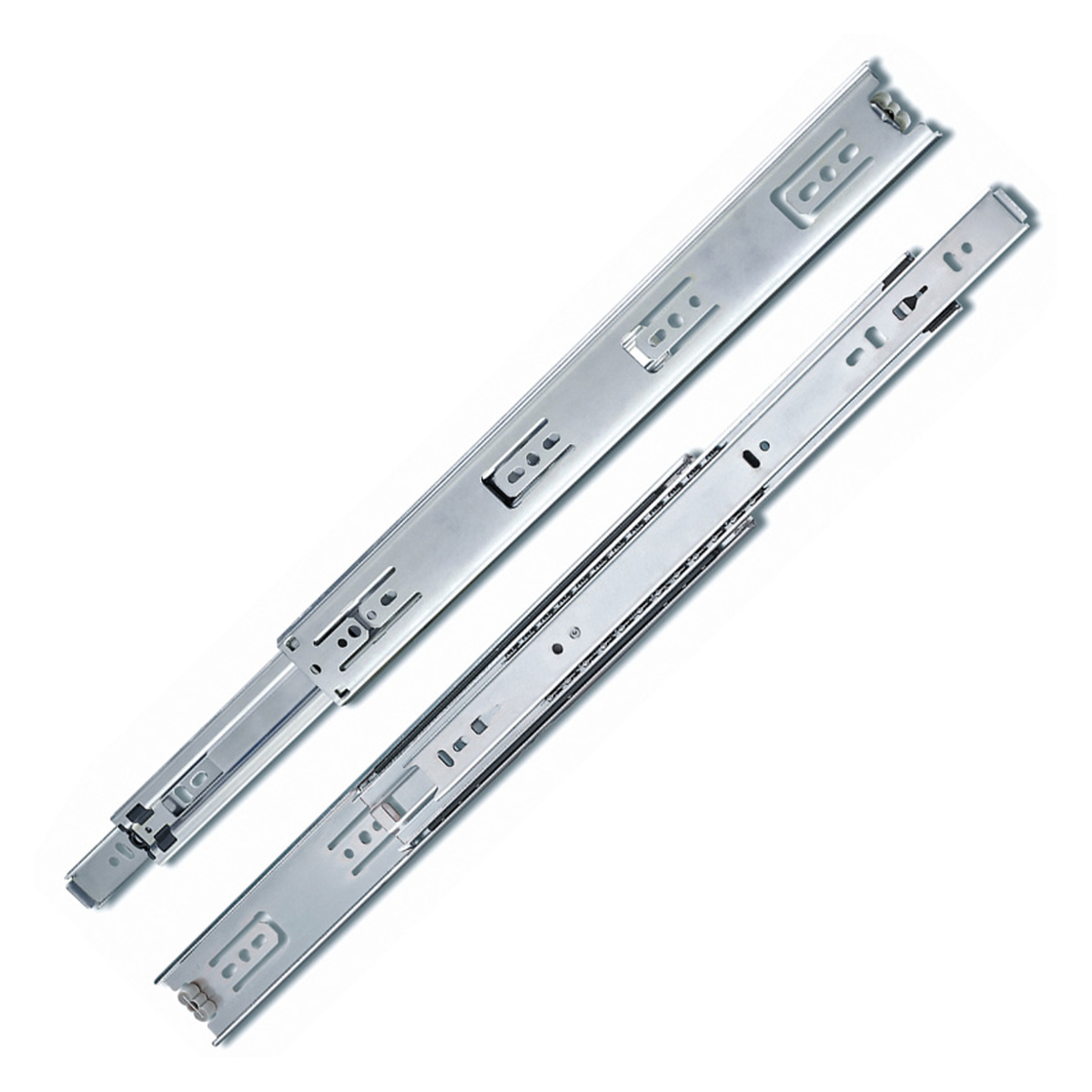

20″ REPON® NJ31733 Ball Bearing Drawer Slide, Side Mount, Over Travel, 90 lb, Zinc
Description
20″ REPON® NJ31733 Ball Bearing Drawer Slide, Side Mount, Over Travel, 90 lb, Zinc
Features:
- Screw mounting system 32mm compatible
- Easy access window to reach hole on cabinet member in closed position
- Breather tab self adjustment to accommodate variation in side clearance
- Non-Handed
Applications:
- Commercial furniture
- Bedroom furniture
- Office furniture
- Kitchen cabinets
Specifications
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| mounting-style | Side Mount |
| length | 20" |
| closed-length | 20" |
| open-length | 41" |
| travel | 21" |
| extension | Full Extension |
| height | 1.8125" |
| spacing | 0.5" |
| load-rating | 90 lb |
| application-type | Medium Duty |
| material | Steel |
| finish | Zinc Clear |
| manufacturer | Repon® |
| series | NJ 31733 |
| quantity | Set, Case |
