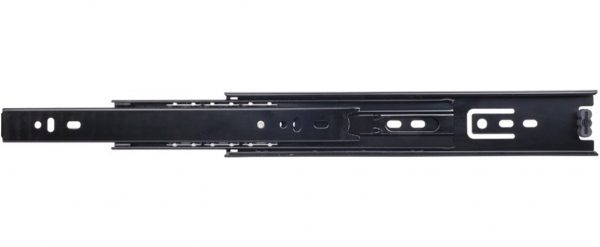

14″ VITUS® 303FU Ball Bearing Drawer Slide, Side Mount, Non-Over Travel, 100 lb, Black

SKU: 11282
-
+

Description

14″ VITUS® 303FU Ball Bearing Drawer Slide, Side Mount, Non-Over Travel, 100 lb, Black



Specifications:

  • Grade 1 ANSI/BHMA certified
  • Lubricated steel ball bearings with cage hold forward – retains cage during drawer member installation
  • Non-handed trigger disconnect released
  • Synthetic rubber hold-in detent prevents bounce-back and roll out
  • Screw mounting system 32mm compatible
  • Easy access window to reach hole on cabinet member in closed position



Materials:

  • 1.0 mm x 1.0 x 1.2 mm cold rolled steel material





Specifications

Weight N/A
Dimensions N/A
mounting-style

Side Mount
length

14"
closed-length

13.78"
open-length

27.56"
travel

13.78"
extension

Full Extension
height

1.77"
spacing

0.5"
load-rating

100 lb
application-type

Medium Duty
material

Steel
finish

Black
brand

Vitus®
series

303FU
quantity

Set
